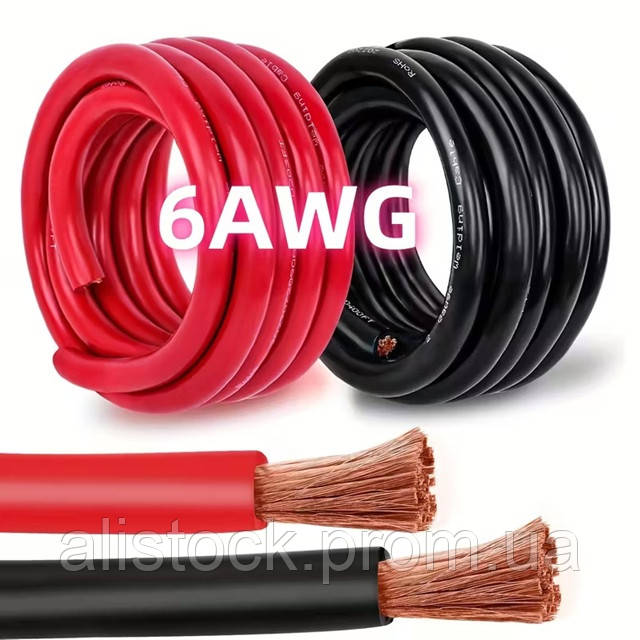

6 AWG Superflexible Heat-Resistant Silicone Cable – 16 sq.mm (3200x0.08)

Application

Silicone cable is a heat-resistant wire with a stranded alkaline copper core and silicone-based insulation. Wires with silicone insulation are widely used in industries with high ambient temperatures. Typical applications:

- Electrical cabinet installation

- Instrumentation, apparatus manufacturing, and robotics

- Electric motor manufacturing

- Saunas and solariums

- Thermocouples, electric heating elements

- Lighting equipment

- Fan manufacturing

- Air conditioning equipment

- Furnace manufacturing

- Plastic recycling

- Generator and transformer manufacturing.

Silicone Wire Construction

1. Superflexible conductive core consisting of thin 0.08 mm tinned copper wires.

2. Silicone-based insulation.

6 AWG Silicone Conductor Specifications

Conductor: 1 stranded conductor (3200 x 0.08 mm)

Conductor Material: Tinned Copper

Cross Section: 6 AWG (16 mm/2)

Insulation: Silicone

Outer Wire Diameter: 8.5 mm

Insulation Color: Red, Black

Technical and Performance Specifications of Silicone Conductor

Standards: Q/IRMV2-2008, UL758

Safety Certifications: RoHS, UL

Rated Voltage: 600 V

Test Voltage: 2000 V (insulation thickness ≤0.5 mm), 2500 V (insulation thickness ≥0.5 mm)

Minimum Bending Radius: Fixed Use - 4D

Flexible Use - 8D (D is the outer diameter of the wire)

Operating Temperature: -60 to +200°C

Radiation resistance: 8×10−7 C/kg

Hotness: Does not support combustion according to FT-1, VW-1 testing

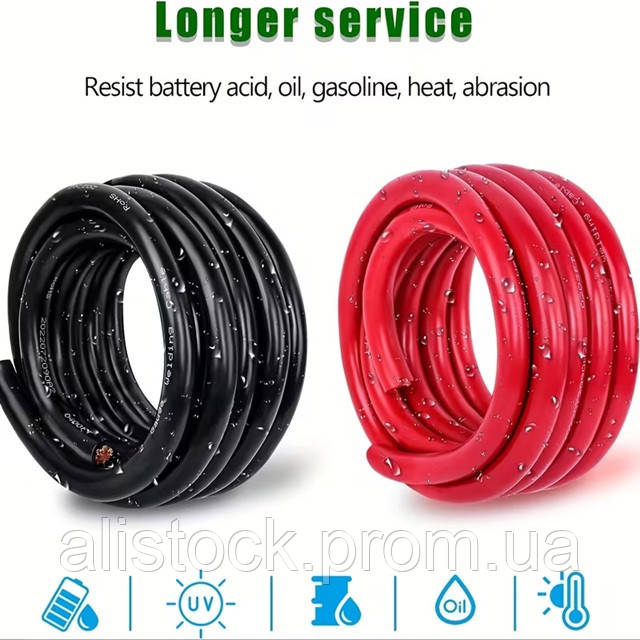

Chemical and physical durability: The cable is resistant to acids, alkalis, oils, alcohols, vegetable and animal fats, precipitation, moisture, dust, and mold.
